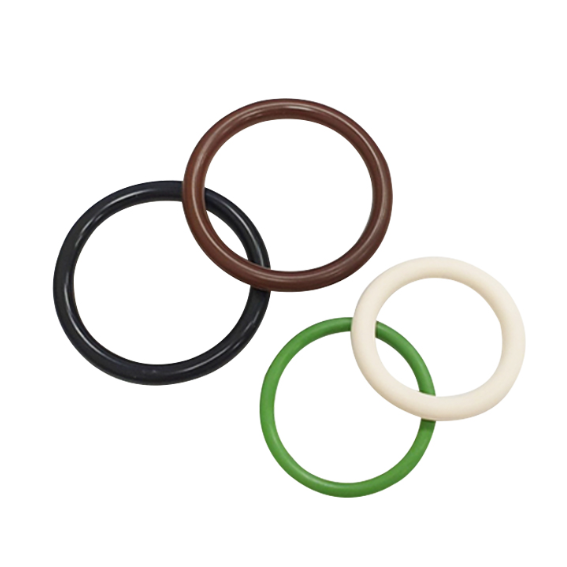

FKM Type-1 O-RING
High-Performance Sealing with Excellent Chemical and Temperature Resistance
Description：
Resists a wide range of aggressive fluids, including oils, fuels, hydraulic fluids, and organic solvents. Also effective against mild acids, alkalis, and chemicals commonly used in industrial processes.
High Temperature Tolerance
Maintains sealing performance in temperatures up to 200°C, making it suitable for engines, pumps, and high-heat applications.
Ozone & Weathering Resistance
Superior durability against environmental exposure, making it suitable for both indoor and outdoor applications.
Reliable Compression Set Performance
Designed to minimize permanent deformation, ensuring a long-lasting, tight seal even under repeated pressure and temperature cycles.
Versatile Formulations
Available in multiple hardness levels (Shore A 70, 75, 80, 90) and tailored grades to meet specific application needs.
| Cost Performance Ratio | ||||||
| FK1 | FK2 | FK3 | FK5 | FVQM | FEPM | FFKM |
| ★ (Low Price) |
★★ (General Price) |
★★★★ (High Cost) |
★★★ (Median Price) |
★★★★ (High Cost) |
★★★★ (High Cost) |
★★★★★ (Very High Cost) |
| Model Table | |||||
| Model | Color | Shore A | Material | Cross-Linking | Remarks |
| FKM Type-1 | White | 70-75 | FKM | Bisphenol | Comparable to Viton™-A |
| FKM Type-1 | Black | 70-90 | FKM | Bisphenol | Comparable to Viton™-A |
| FKM Type-1 | Red | 70-80 | FKM | Bisphenol | Comparable to Viton™-A |
| FKM Type-1 | Green | 70-80 | FKM | Bisphenol | Comparable to Viton™-A |
